Styling Action Bar

Background color, background image and logo of ActionBar can be customized by setting appropriate attibutes in BrowserParams. You can either pass background color or background image. If both are passed, priority will be given to the background image.

browserParams.setActionBarIcon(getResources().getDrawable(R.drawable.juspay_logo_white));
browserParams.setActionBarBackgroundColor(new ColorDrawable(0xFF0000BB));
browserParams.setActionBarBackgroundImage(getResources().getDrawable(R.drawable.abc_item_background_holo_light));

Adding Order Summary

You can give a brief order summary to the user by using the OnScreenDisplay object. This would shown above the webview, just below the toolbar. Use one of the predefined views to construct a OnScreenDisplay object and pass it to browser by calling browserFragment.showOnScreenDisplay(osd)

Travel

Onwards Journey

Create a TravelModel for onwards journey and pass it in single-param constructor. For the best user experience set all the values as shown below.

TravelModel onwardsTravelModel = new OnScreenDisplay.TravelModelBuilder()
                        .setJourneyFromCity(new JourneyCity("Bangalore", "BLR", "8:00 AM"))
                        .setJourneyToCity(new JourneyCity("New Delhi", "DEL", "11:30 AM"))
                        .setJourneyFlightNumber("6E-522")
                        .setJourneySeatingClass("Economy")
                        .setJourneyAirlineName("Indigo")
                        .setJourneyDate("11 Sep 2016")
                        .setTravellersNameList(getTravellersList())
                        .createTravelModel();

OnScreenDisplay osd = OnScreenDisplay.Travel(onwardsTravelModel)
                        .setAmount("₹ 12300")
                        .build();

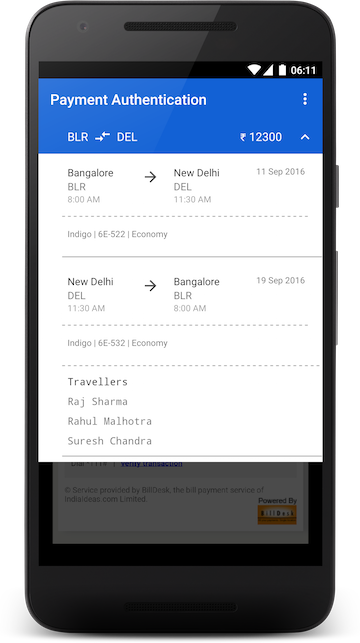

Return Journey

You can create two TravelModel like above pass them both in the two-params constructor.


OnScreenDisplay osd = OnScreenDisplay.Travel(onwardsTravelModel, returnTravelModel)
                        .setAmount("₹ 12300")
                        .build();

Multicity Journey

Create a list of TravelModel and pass it in the single list param constructor.


List<TravelModel> travelModelList = new ArrayList<TravelModel>();
traveModelList.add(firstTravelModel);
traveModelList.add(intermediateTravelModel);
traveModelList.add(lastTravelModel);

OnScreenDisplay osd = OnScreenDisplay.Travel(travelModelList)
                        .setAmount("₹ 12300")
                        .build();

Booking

Hotel Booking

For Hotel booking use the constructor with the following parameters

Variable	Description	Required
bookingTitle	Primary title. Appears on collapsed layout and on the top of the expanded view.	Yes
bookingSubTitle	Secondary Tite. Usually the address of the hotel.	Yes
bookingShortDesc	Short description of the stay. Usually stating the number of guests and nights.	Yes
hotelBookingModel	Model created using HotelModelBuilder	Yes

OnScreenDisplay.HotelBooking("Hotel Maverick International",
        "Old Madras Road, Bangalore, Karnataka",
        "2 Guests | 3 Nights",
        new OnScreenDisplay.HotelModelBuilder()
                .setCheckInDate("23 Sept 2016")
                .setCheckInExtra("08:00 AM")
                .setCheckOutDate("25 Sept 2016")
                .setCheckOutExtra("11:00 PM")
                .setGuestList(getGuestList())
                .createHotelModel())
        .setAmount("₹ 12300")
        .build();

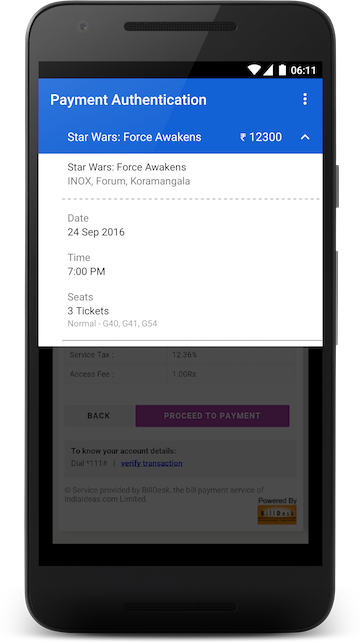

Event Booking

Event booking OSD for Movies, Events orders.

OnScreenDisplay.EventBooking(new OnScreenDisplay.EventModelBuilder()
            .setDate("24 Sep 2016")
            .setTime("7 PM")
            .setEventName("Star Wars: Force Awakens")
            .setVenue("Inox Forum")
            .setTicketCount(1)
            .setTicketDescription("Normal - G40, G41, G54")
            .createEventModel())
    .setAmount("₹ 12300")
    .build();

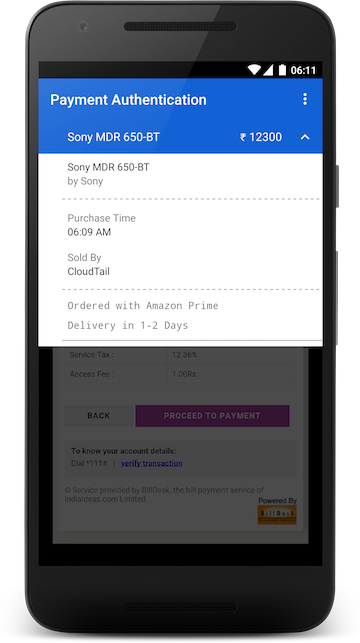

GeneralPurchase

This is a builder which can be used for E-Commerce, Recharge or Delivery.

Variable	Description	Required
orderTitle	Primary title. Appears on collapsed layout and on the top of the expanded view.	Yes
orderSubtitle	Secondary Title. Usually the product's company name.	Yes
purchaseDate	Time or Date of the order.	Yes
sellerName	Seller name	Yes
extras	List displayed at bottom of expanded view. Eg estimated delivery time, availed offer	Yes

OnScreenDisplay.GeneralPurchase("Sony MDR 650-BT",
        "by Sony",
        "8:45 PM 14 Sept 2016",
        "CloudTail", extras)
        .setAmount("₹ 12300")
        .build();

Collapsed Only

If you don't want to show expanded view in the OSD, you can use this OSD Type. The expansion would be disabled for this OSD type.

OnScreenDisplay.CollapsedOnly("Recharge for 9829880095")
        .setAmount("₹ 145")
        .build()

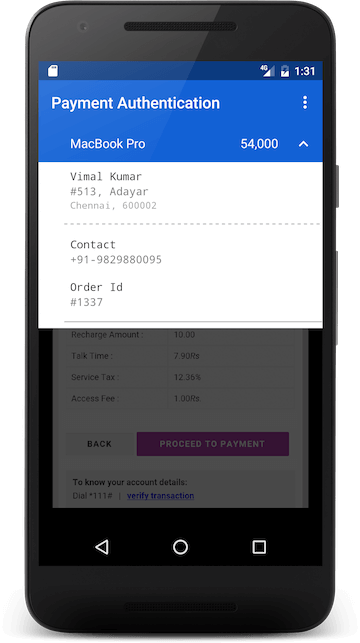

Generic Builder

A generic builder can be used to create the UI manually. Start by sending the order title in the OnScreenDisplay.Generic("MacBook Pro Retina") API. You can now access the following methods to build the UI:

Method	Description
appendSingleLine	Adds a single line text view
appendDoubleLine	Adds a vertically stacked double line view with title and subtitle hierarchy
appendTripleLine	Adds a vertically stacked triple line view with title, subtitle and a caption
appendDottedDivider	A dotted line across the full width of the view
appendFullDivider	A full line across the full width of the view

OnScreenDisplay.Generic("MacBook Pro")
        .appendTripleLine("Vimal Kumar", "#513, Adayar", "Chennai, 600002")
        .appendDottedDivider()
        .appendDoubleLine("Contact", "+91-9829880095")
        .appendDoubleLine("Order Id", "#1337")
        .setAmount("54,000")
        .build()
